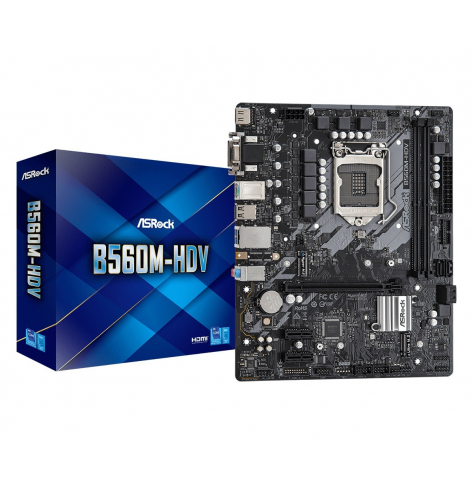

B560M-HDV

Intel B560

• 4600 MHz
• 5000 MHz

• 2 x PCIe 3.0 x 1
• 1 x PCIe 4.0 x 16

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Supports Surge Protection

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• 1 x PS/2 Klawiatura/Mysz Combo
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 1 x Głośnik centralny / Subwoofer
• 1 x Line In
• 1 x MIC
• 1 x RJ-45
• 2 x USB 2.0
• 4 x USB 3.1

• 1 x 4pin wentylator procesora
• 1 x 4pin wentylator opcjonalny procesora
• 2 x 4pin wentylator obudowy
• 1 x 8pin 12V zasilanie
• 1 x 24pin ATX zasilanie
• 2 x USB 2.0/1.1
• 1 x USB 3.0
• 1 x Port szeregowy
• 1 x TPM
• 1 x Przedni panel audio
• 1 x Czujnik otwarcia obudowy

• ASRock Super Alloy
• - Premium 50A Power Choke
• - Sapphire Black PCB
• - High Density Glass Fabric PCB
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment

24.4 cm x 19.8 cm
