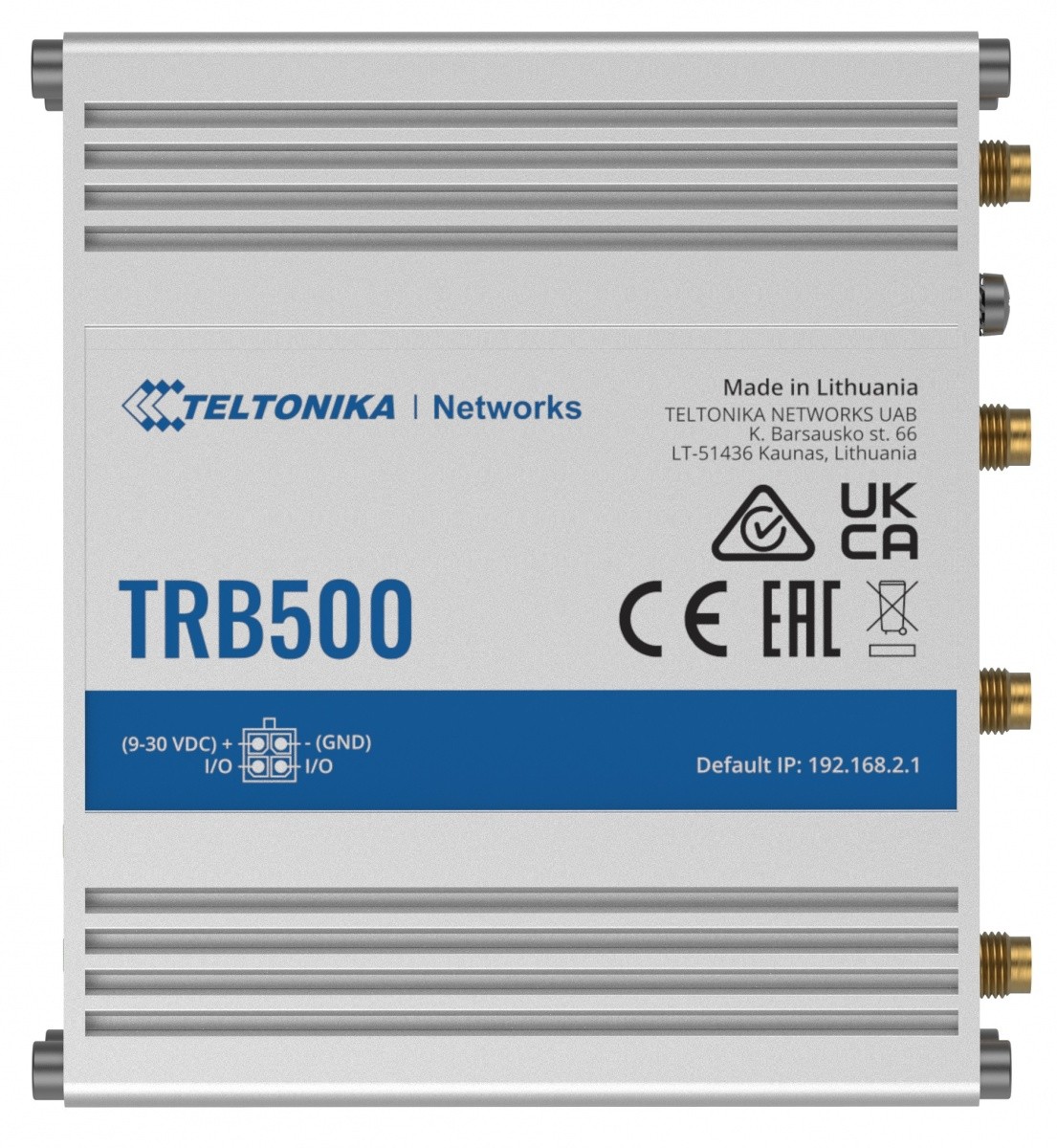

Router TELTONIKA Bramka 5G / LTE - TRB500

TRB500

• GSM 3G/4G
• 5G

• UMTS
• LTE

• 850 MHz
• 900 MHz
• 2100 MHz

• 800 MHz
• 850 MHz
• 900 MHz
• 1500 MHz
• 1800 MHz
• 2100 MHz
• 2300 MHz
• 2500 MHz
• 2600 MHz
• 3400 MHz
• 3600 MHz

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: Port and tag-based VLAN separation
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

• Funkcje mobilne: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Protokoły sieciowe: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
• Funkcje sieciowe: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Monitorowanie i zarządzanie: Management WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier
• Rozwiązania chmurowe: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

• 1 x 10/100/1000 Mbit/s
• 1 x micro USB
• 1 x Slot karty SIM

Gniazdo 4-pinowe, 9-30 VDC

RutOS (OpenWrt based Linux OS)

• Temperatura robocza: -40°C do 75°C
• Wilgotność podczas pracy: od 10% do 90% bez kondensacji

• TRB500
• Zasilacz 9W
• 4 x Antena (obrotowa, męskie SMA)
• Kabel Micro-USB (0.8 m)
• Kabel Ethernet
• Adapter SIM
• Skrócona instrukcja obsługi

100 x 30 x 93.4 mm

• Obsługa sieci: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2);
• 4G LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G 42 Mbps DL, 5.76Mbps UL
• CPU: Single core ARM Cortex A7, 1,5 GHz
• Pamięć Flash: 512 MB
• RAM: 256 MB
