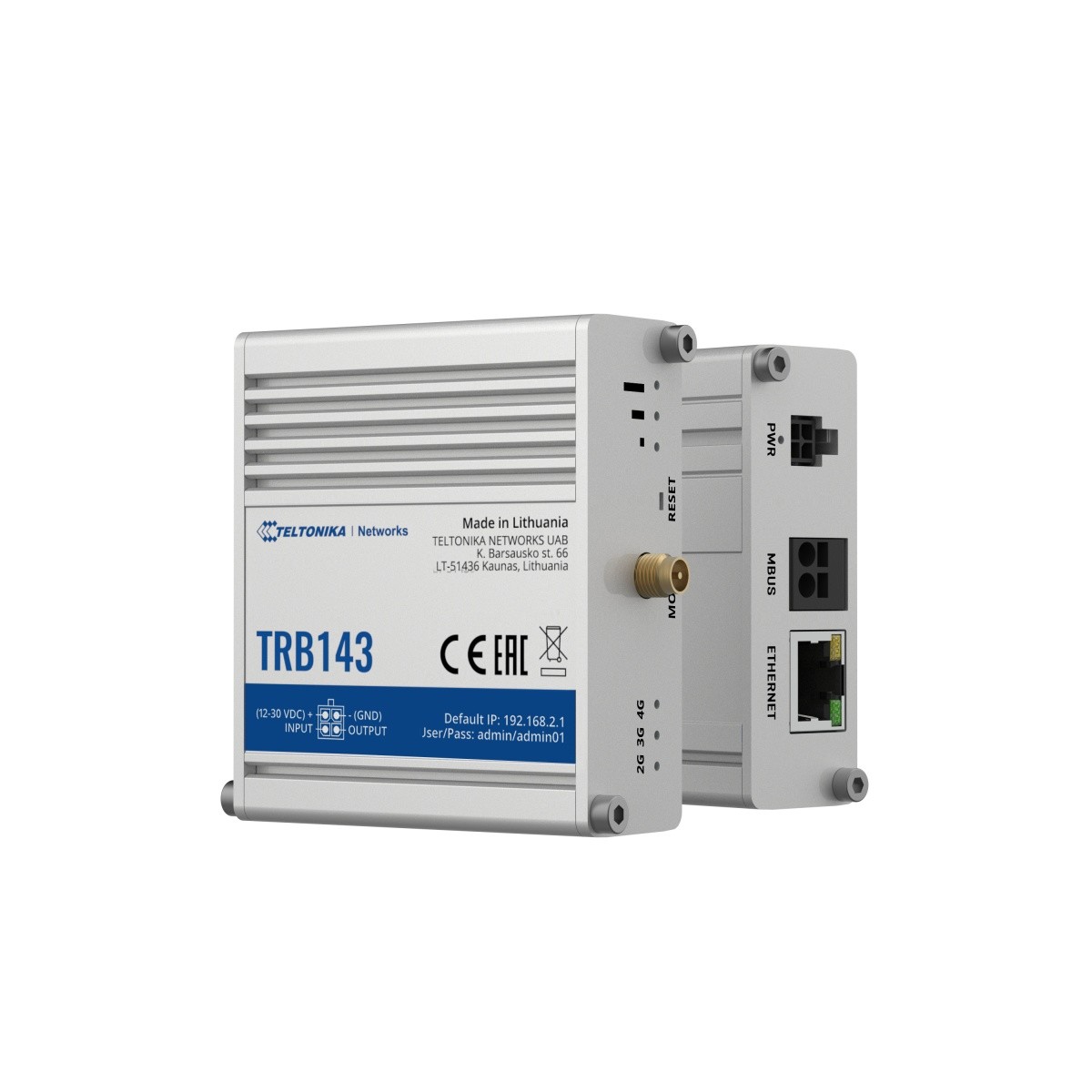

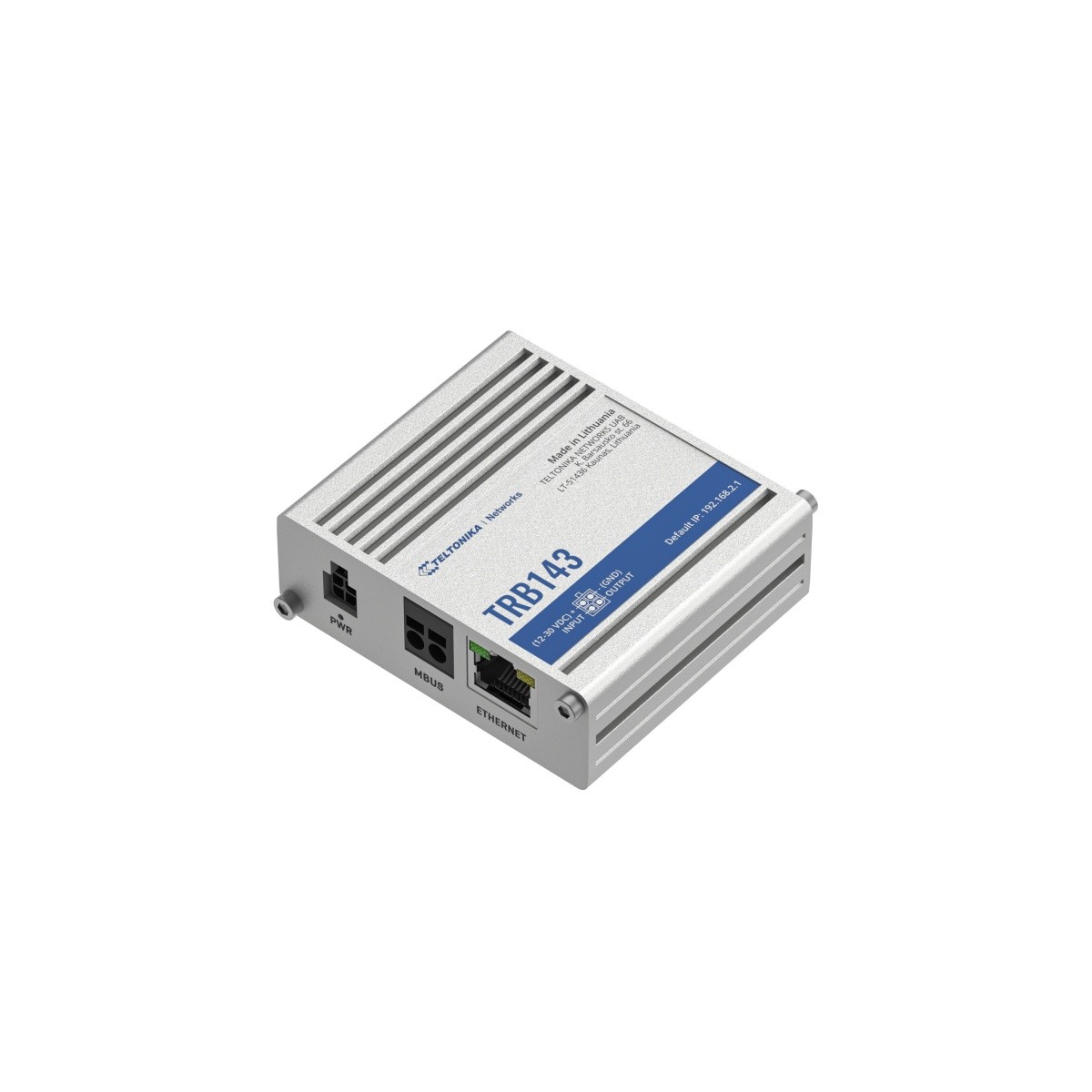

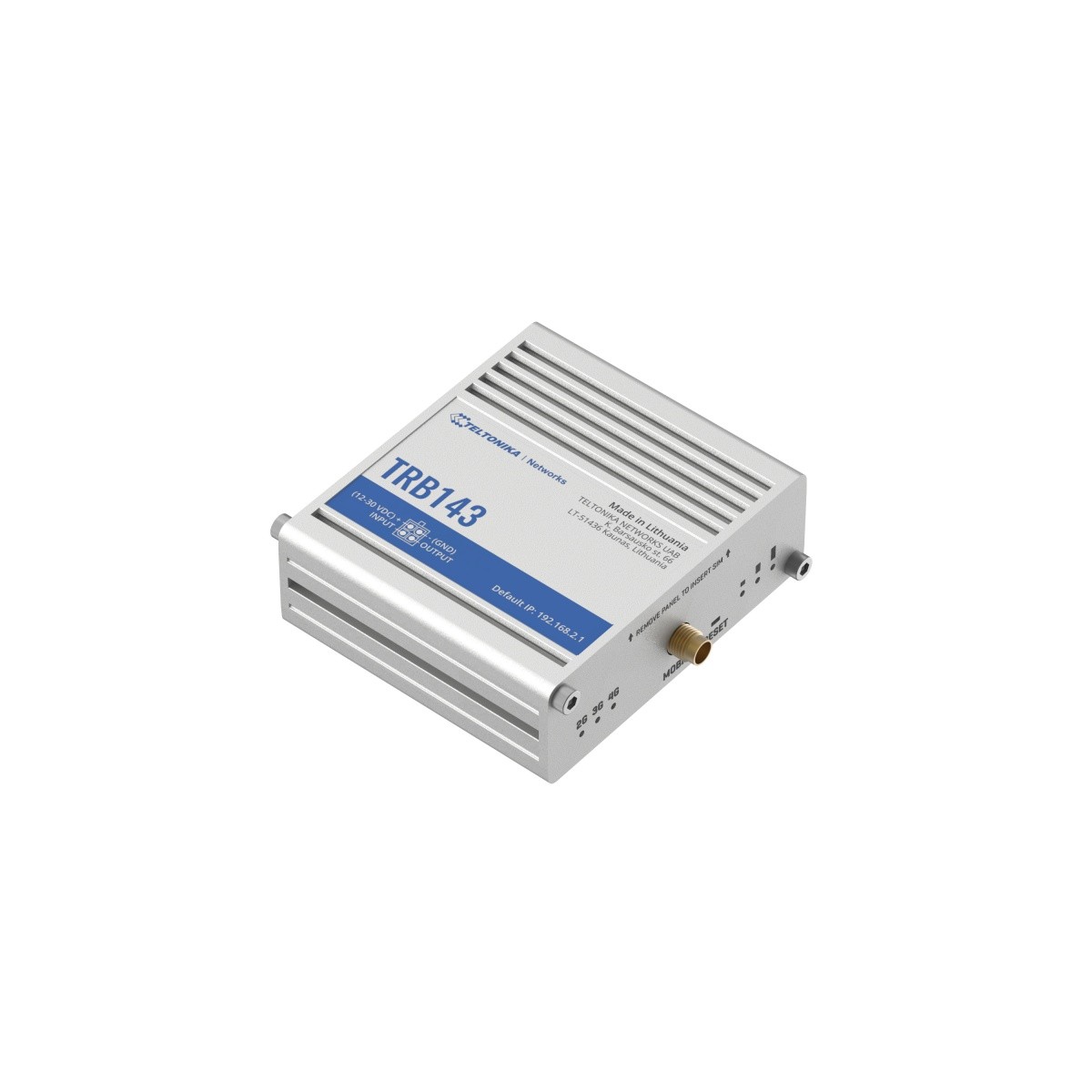

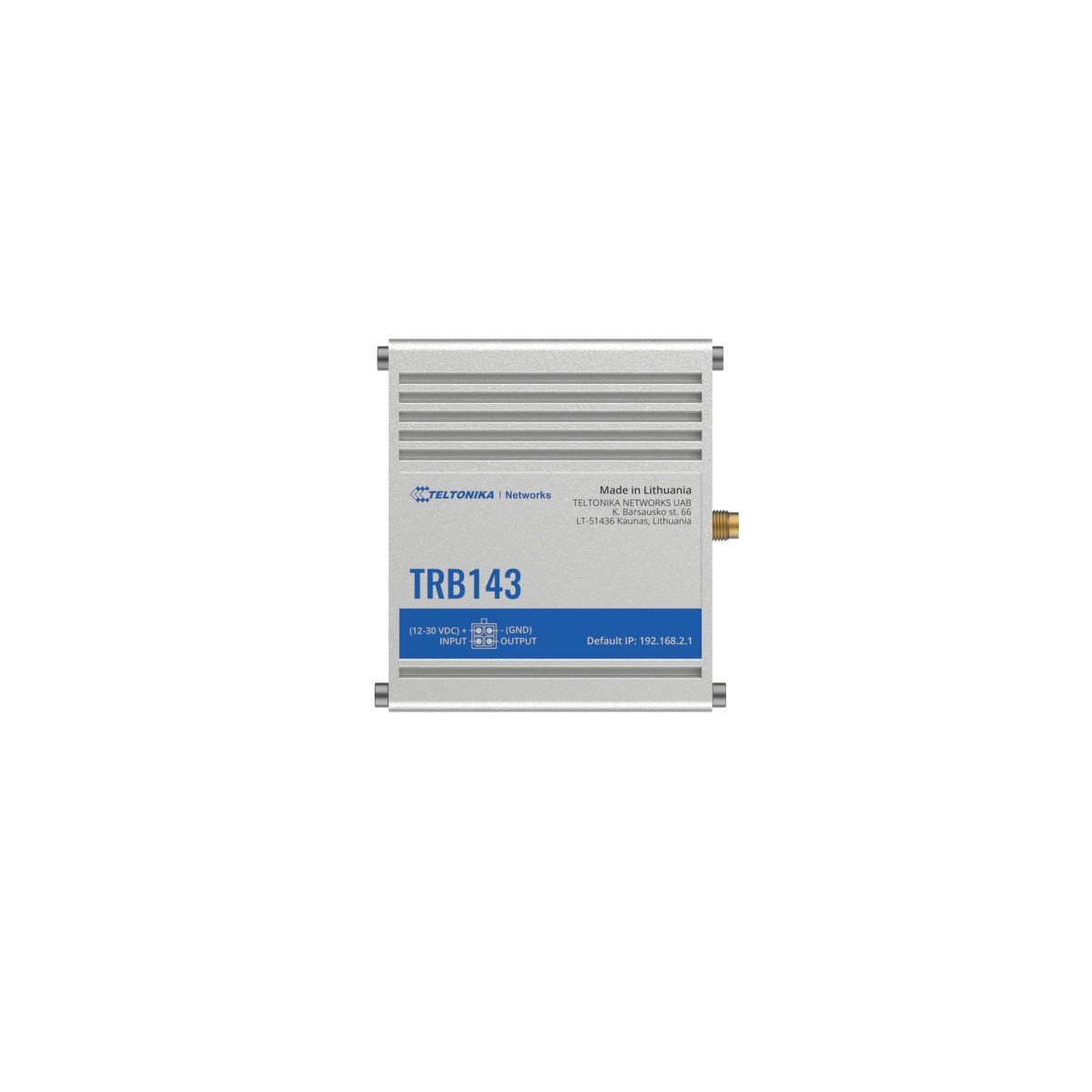

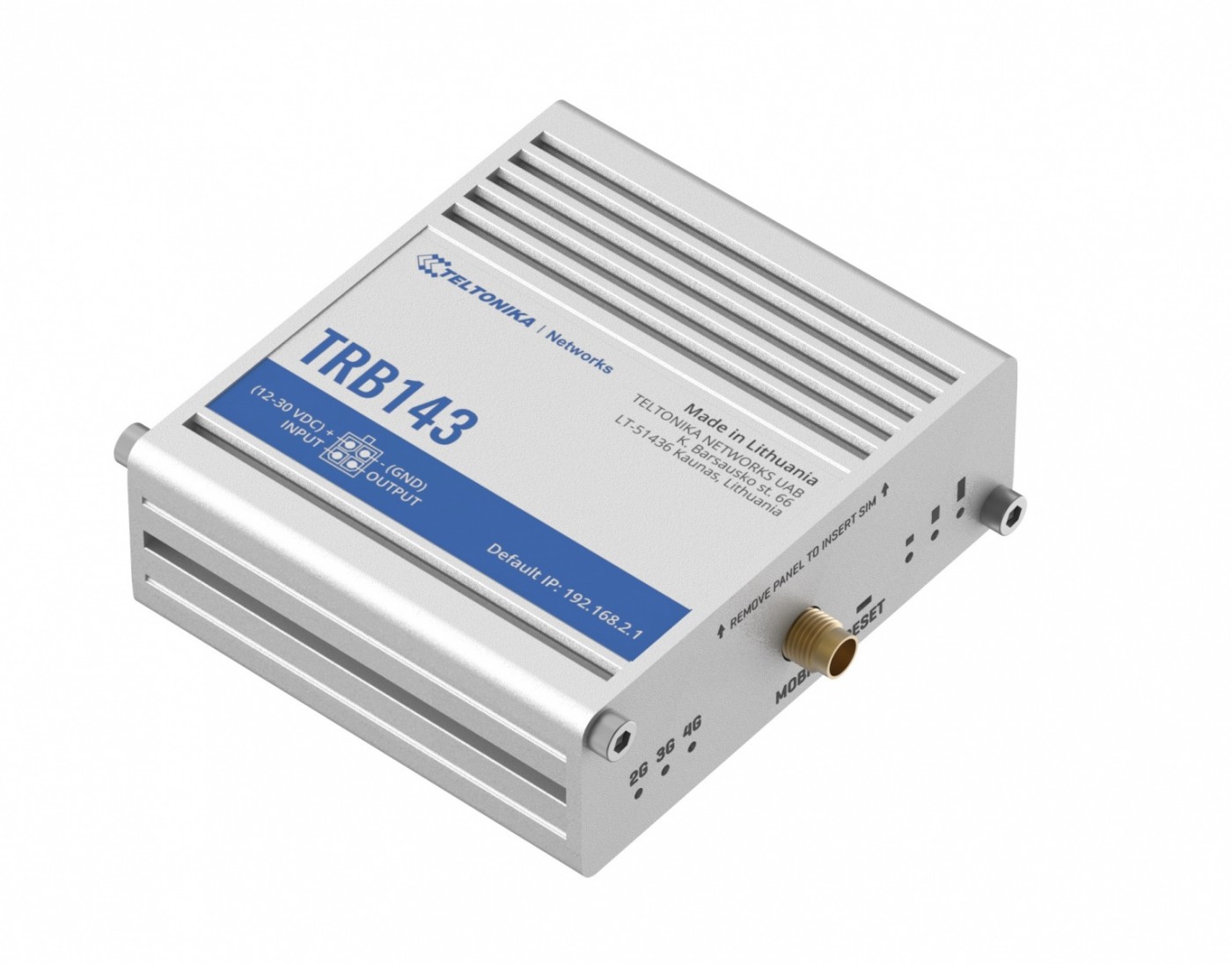

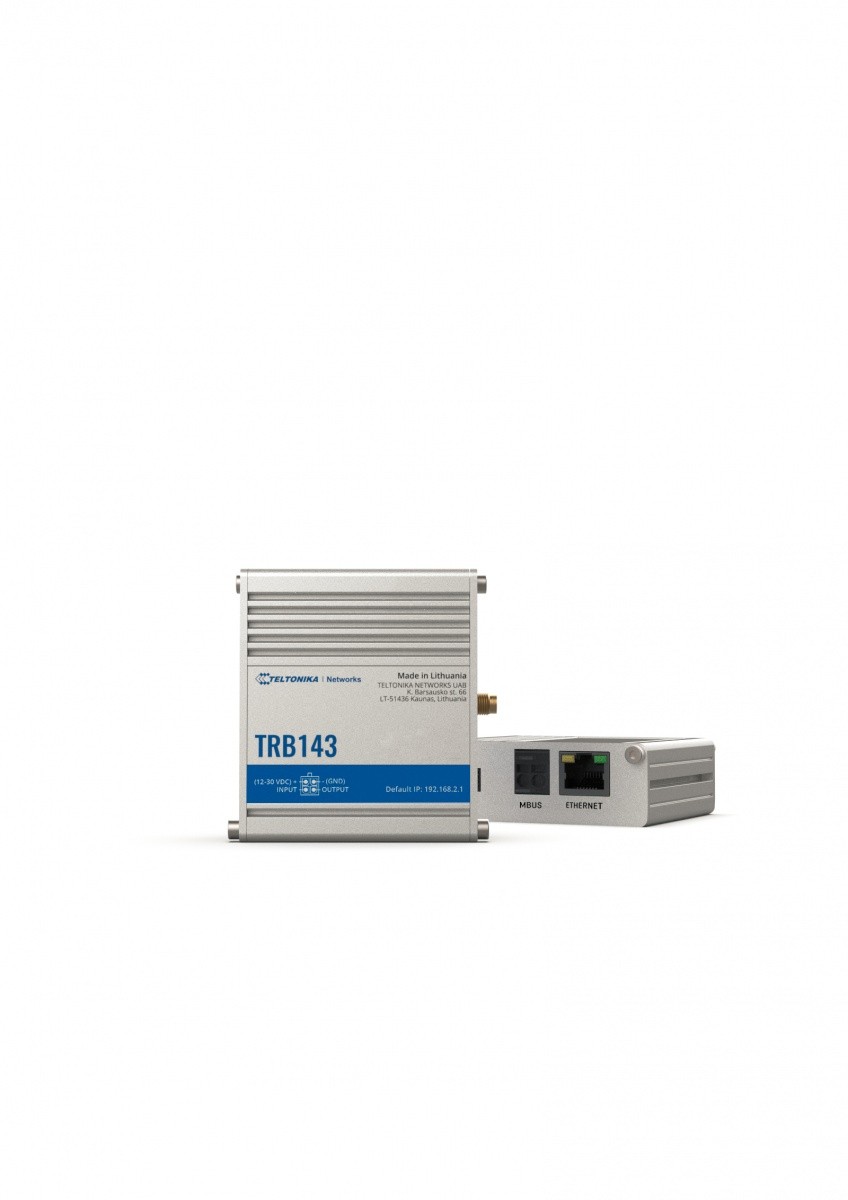

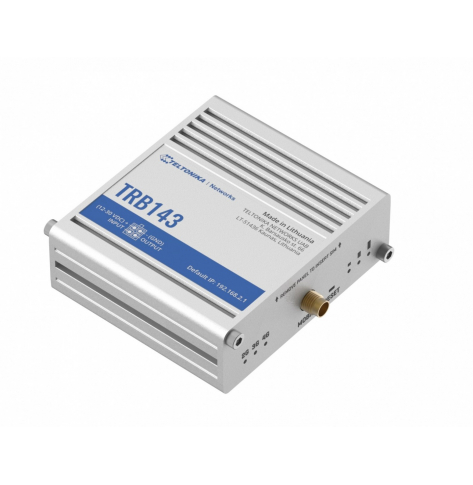

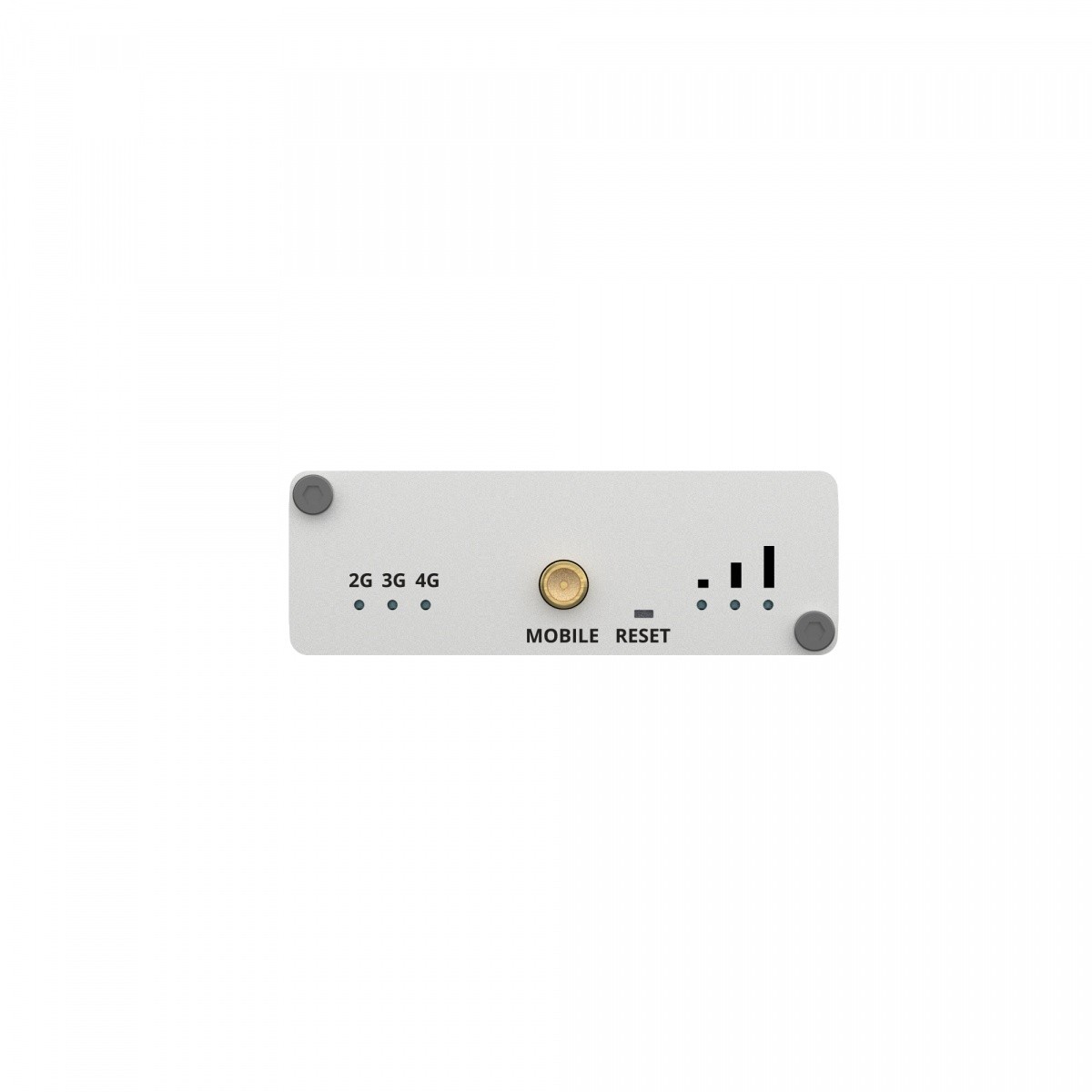

TRB143

• GPRS
• UMTS
• LTE

• 900 MHz
• 1900 MHz

• 900 MHz
• 2100 MHz

• 700 MHz
• 800 MHz
• 900 MHz
• 1800 MHz
• 2100 MHz
• 2300 MHz
• 2500 MHz
• 2600 MHz

• 802.11e
• 802.3
• 802.3az
• 802.3u

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

• Sieć: Routing, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, SSHFS
• VPN: OpenVPN, GRE, IPsec, PPTP, L2TP, SSTP, Stunnel, DMVPN, WireGuard, ZeroTier
• Zarządzanie i monitorowanie: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, Modbus, RMS
• Monitoring połaczenia: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Chmura: RMS, Clouds of things, ThingWorx, Cumulocity, Azure IoT Hub

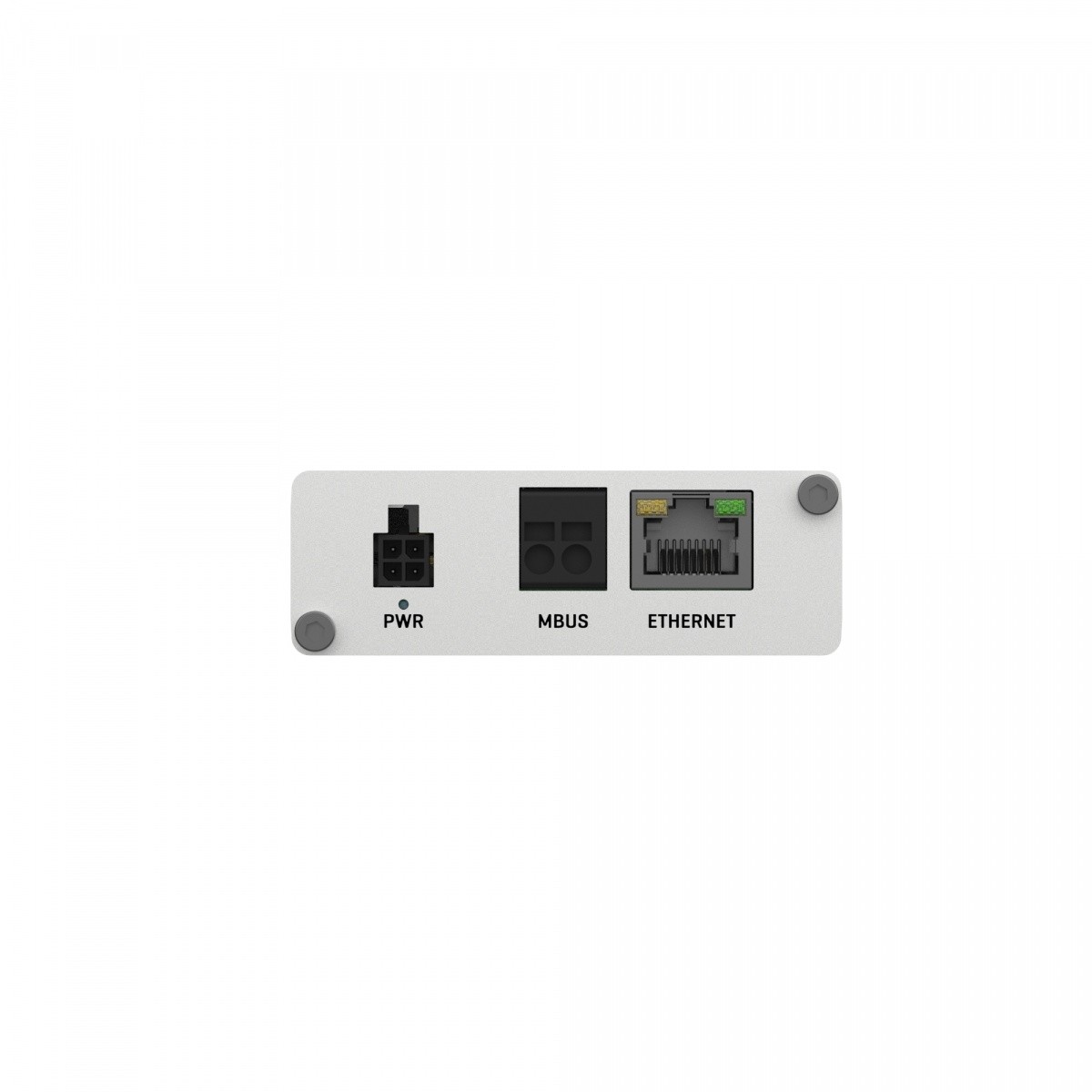

• 1 x 10/100/1000 Mbit/s
• 1 x Slot karty SIM
• 1 x M-BUS

Złącze 4pin,  12-30 VDC

RutOS (OpenWrt based Linux OS)

• TRB143
• Zasilacz 18 W
• Klucz HEX
• Kabel LAN  1.5 M
• Skrócona instrukcja obsługi
• Antena LTE  (magnetyczna, złącze męskie SMA, kabel 3m)
• QSG (Quick Start Guide)
• Skrócona instrukcja obsługi

74.5 x 25 x 64.4 mm

• Temperatura pracy: -40 °C do 75 °C
• Wilgotność podczas pracy: 10% do 90% bez kondensacji

• CB
• CE
• UKCA
• RoHS
• REACH
• WEEE
