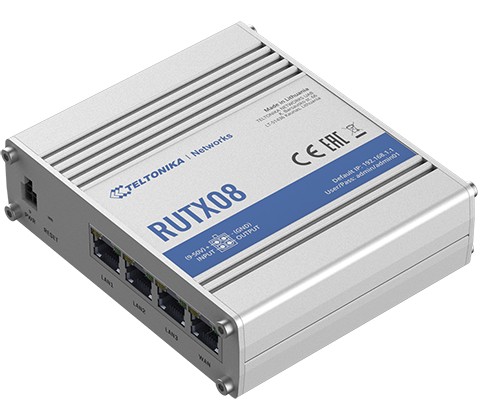

RUTX08

• 4 x 10/100/1000 Mbit/s
• 1 x USB 2.0

• 802.3
• 802.3az
• 802.3u

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Zarządzanie i monitoring: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Cloud solutions: RMS, FO
• Administrowanie: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
• TA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Serwisy: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging

Gniazdo 4-pinowe, 9-50 VDC

RutOS (OpenWrt based Linux OS)

• Temperatura robocza: -40°C do 75°C
• Wilgotność podczas pracy: od 10% do 90% bez kondensacji

• Router RUTX08
• Zasilacz 18 W
• Kabel Ethernet (1,5 m)
• Skrócona instrukcja obsługi
• Ulotka RMS

115 x 32.2 x 95.2 mm

• Procesor: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Pamięć Flash: 256 MB
• Pamięć RAM: 256 MB
