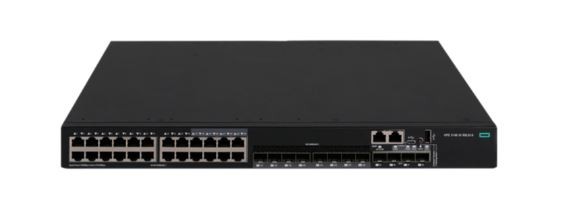

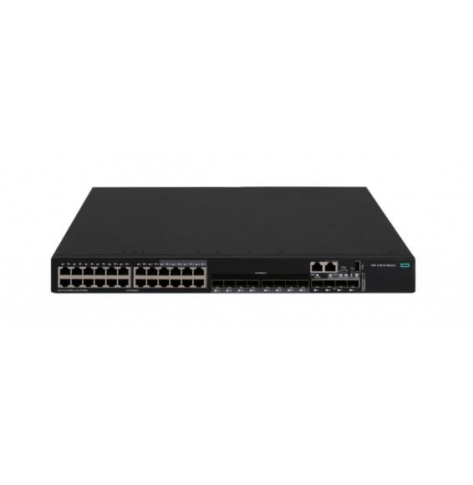

Switch HP 5140-24G-4SFP+ 1-slot HI R9L61A

• L2
• L3

• IEEE 802.1ad Q-in-Q
• IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP)
• IEEE 802.1AE MACsec
• IEEE 802.1AX2008 Link Aggregation
• IEEE 802.1D MAC Bridges
• IEEE 802.1p Priority
• IEEE 802.1Q (GVRP)
• IEEE 802.1Q VLANs
• IEEE 802.1s Multiple Spanning Trees
• IEEE 802.1v VLAN classification by Protocol and Port
• IEEE 802.1w Rapid Reconfiguration of Spanning Tree
• IEEE 802.1X PAE
• IEEE 802.3 Type 10BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3ac (VLAN Tagging Extension)
• IEEE 802.3ad Link Aggregation (LAG)
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• IEEE 802.3ae 10-Gigabit Ethernet
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet Plus
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-X
• IEEE 802.3x Flow Control
• IEEE 802.3z 1000BASE-X RFC 768 UDP
• RFC 783 TFTP Protocol (revision 2)
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 854 TELNET
• RFC 855 Telnet Option Specification
• RFC 894 IP over Ethernet
• RFC 925 Multi-LAN Address Resolution
• RFC 950 Internet Standard Subnetting Procedure
• RFC 951 BOOTP
• RFC 959 File Transfer Protocol (FTP)
• RFC 1027 Proxy ARP
• RFC 1042 IP Datagrams
• RFC 1058 RIPv1
• RFC 1071 Computing the Internet Checksum
• RFC 1166 IP Addresses
• RFC 1122 Requirements for Internet HostsCommunication Layers
• RFC 1123 Requirements for Internet Hosts
• RFC 1141 Incremental updating of the Internet checksum
• RFC 1191 Path MTU discovery
• RFC 1213 Management Information Base for Network Management of TCP/IP-based internets
• RFC 1256 ICMP Router Discovery Protocol (IRDP)
• RFC 1305 NTPv3
• RFC 1350 TFTP Protocol (revision 2)
• RFC 1519 CIDR
• RFC 1533 DHCP Options and BOOTP Vendor Extensions
• RFC 1542 BOOTP Extensions
• RFC 1591 DNS (client only)
• RFC 1643 Definitions of Managed Objects for the Ethernet-like Interface Types
• RFC 1723 RIP v2
• RFC 1812 IPv4 Routing
• RFC 1866 Hypertext Markup Language2.0
• RFC 1887 An Architecture for IPv6 Unicast Address Allocation
• RFC 1901 Introduction to Community-based SNMPv2
• RFC 1902-1907 SNMPv2
• RFC 2131 DHCP
• RFC 2236 IGMP Snooping
• RFC 2375 IPv6 Multicast Address Assignments
• RFC 2462 IPv6 Stateless Address Autoconfiguration
• RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers
• RFC 2475 Architecture for Differentiated Services
• RFC 2597 Assured Forwarding PHB Group
• RFC 2616 Hypertext Transfer ProtocolHTTP/1.1
• RFC 2644 Directed Broadcast Control
• RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types
• RFC 2668 Definitions of Managed Objects for
• IEEE 802.3 Medium Attachment Units (MAUs)
• RFC 2711 IPv6 Router Alert Option
• RFC 2865 Remote Authentication Dial In User Service (RADIUS)
• RFC 2866 RADIUS Accounting
• RFC 2868 RADIUS Attributes for Tunnel Protocol Support
• RFC 3046 DHCP Relay Agent Information Option
• RFC 3246 Expedited Forwarding PHB
• RFC 3410 Applicability Statements for SNMP
• RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
• RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
• RFC 3416 Protocol Operations for SNMP
• RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
• RFC 3418 Management Information Base (MIB) for the Simple Network Management
• RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6)
• RFC 3493 Basic Socket Interface Extensions for IPv6
• RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6
• RFC 3576 Ext to RADIUS (CoA only)
• RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
• RFC 3587 IPv6 Global Unicast Address Format
• RFC 3596 DNS Extensions to Support IP Version 6
• RFC 3704 Unicast Reverse Path Forwarding (URPF)
• RFC 4113 Management Information Base for the User Datagram Protocol (UDP)
• RFC 4213 Basic IPv6 Transition Mechanisms
• RFC 4250 The Secure Shell (SSH) Protocol Assigned Numbers
• RFC 4251 The Secure Shell (SSH) Protocol Architecture
• RFC 4252 The Secure Shell (SSH) Authentication Protocol
• RFC 4253 The Secure Shell (SSH) Transport Layer Protocol
• RFC 4254 The Secure Shell (SSH) Connection Protocol
• RFC 4291 IP Version 6 Addressing Architecture
• RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification
• RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD)
• Snooping Switches
• RFC 4594 Configuration Guidelines for DiffServ Service Classes
• RFC 4675 RADIUS VLAN & Priority
• RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

• RFC 2474 DS Field in the IPv4 and IPv6 Headers
• RFC 3260 New Terminology and Clarifications for DiffServ

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 608252 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; RoHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• RFC 1215 Convention for Defining Traps for use with the SNMP
• RFC 2579 Textual Conventions for SMIv2
• RFC 2580 Conformance Statements for SMIv2
• RFC 2818 HTTP over TLS
• RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
• RFC 6398 IP Router Alert Considerations and Usage
• ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3

100240 VAC, znamionowe (90264 VAC, maks.) -48 do -60 VDC, znamionowe (od -36 do -72 VDC, maks.) (w zależności od wybranego zasilacza)

440.0 x 360.0 x 43.6 mm
